| Place of Origin: | China, Shanghai |
| Brand Name: | Osign |
| Model Number: | OCAV160 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton box and pallet |
| Delivery Time: | 1-3 Days |
| Payment Terms: | T/T, money gram, western union, L/C, D/P |
| Supply Ability: | 500000 Rolls Per Week |
| Type: | Logo / Badge, Top Quality&economic Type Optional | Use: | Body Stickers |
|---|---|---|---|
| Material: | PVC | Size: | 0.914~1.52M * 50M |
| Load Port: | Shanghai | Packing: | Kraft Paper/hard Tube Rolling Carton |
| Lenght/roll: | 50M Or As Your Request | Payment Term: | T/T/ L/C/ WEST UNION/ PAYPAL |
| Quality: | Vivid Image/good Ink Absorption/flat Sureface | Price: | Powerful |
| Port: | Shanghai | ||
| High Light: | self adhesive vinyl sheets,self adhesive wood grain vinyl film |
||

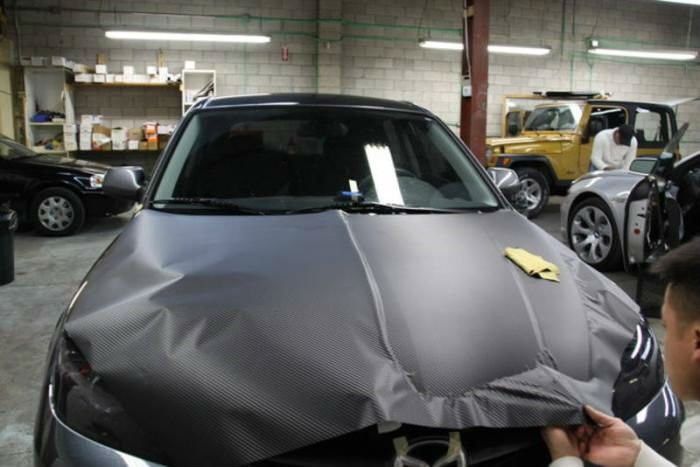

color? change film for car /matt black sticker with bubble free /auto stickers /carbon fiber tape /carbon fiber vinyl film/ 3D carbon film Top quality&economic type optional
Advantages
Osign brand Carbon Fiber Vinyl are flexible PVC films with perfect adhesive intended to cover all type of the surfaces, such as wall covering, furniture, fixture, ceiling, doors, elevators, exterior/interior applications.
Osign brand Carbon Fiber Vinyl are durable, dimensionally stable, vinyl films that were specifically developed for interior/exterior decorations and refurbishment.
Effective Performance Life
The warranty for Osign brand Carbon Fiber Vinyl for interior/exterior decoration as stated here extend to automotive or personal vehicle applications . The warranty applies to films that are exposed interior/exterior at a vertical angle (defined as +/-10°). A significant decrease in durability may be experienced if films are exposed other than vertically. Such non-vertical application should be based on Osign tests results and approval to determine acceptability. Effective Performance Life of unprinted interior/exterior
Osign brand Carbon Fiber Vinyl depends on application exposure zones as follows.
Fabrication Cutting with Electronic Systems
Osign Carbon Fiber Vinyl is normally applied in sheets directly from the roll. In case people want to cut or screen print that is possible but not the primary intention of the film. Knife adjustment may be required as the product construction may differ from comparable products. The minimum height for text is 10 mm.
Physical and Chemical Properties
Values given are typical and are not for use in specifications. If a custom specification is desired, a request should be submitted through your sales representative. The following data is given for unprinted film.
Application Temperature
We recommends applying Carbon Fiber Vinyl products at 15°C - 38°C.
Physical Properties
|
Property |
Metric Units |
|
Thickness (Film + Adhesive) |
0.170mm– 0.180 mm |
|
Elongation |
> 100 % |
|
Dimensional Stability (X-gash) |
> 0.3 mm max |
|
Abrasion Resistance Taber abrasion (0.5 kg load, CS-17) |
1000 cycles Surface will be damaged |
|
Impact Resistance (Gardner at 0°C), 2 lb X 5 inch at 4°C |
No effect |
|
Humidity Resistance at 40°C (95% RH X 7 days) |
No effect |
|
Water Resistance (40°C water X 7 days) |
No effect |
|
Stain Resistance 18 hours Milk, Coffee, Wine, Lemon juice, Tea, Vinegar, Soybean oil, Salt water (1%), Ammonium water, Soap water (1%), Synthetic detergent, Hydrochloric acid (10%), Sodium hydroxide (10%) |
No effect |
Adhesion (N/25 mm)
|
Substrate |
Adhesion (No Primer) |
Adhesion (W/DP-900N) |
|
Lauan Veneer |
4.9 |
34.3 |
|
China Veneer |
4.9 |
30.4 |
|
Plaster Board |
- |
4.9* |
|
Asbestos Slate Board |
4.9 |
34.3 |
|
Melamine-baked Steel Sheet |
30.4 |
52 |
|
Phosphate-coated Steel Sheet |
24.5 |
54 |
|
PVC-coated Steel Sheet |
44.1 |
44.1 |
|
Aluminum |
27.1 |
39 |
|
Stainless Steel Sheet |
37.2 |
42 |
|
Acrylic Board |
38.2 |
54.9 |
|
Mortar |
3.9 |
21.6 |
Chemical Resistance
Product applied to an aluminum panel, conditioned for 72 hours and then immersed in the chemical agents.
Stain Resistance
Carbon Fiber Vinyl product applied to an aluminum panel and placed in direct contact with the following substances at 20°C, 65%RH.
Flammability
Information about the new Carbon Fiber Vinyl approval numbers according to various test standards
|
Approval Type, Number |
Product Type |
Test Substrate |
Classification |
Copy of Certificate |
|
IMO |
FW 646 |
Non-flammable substrate |
Non-combustible |
GPRD |
|
SBI
EN 13823:2002 |
ST 553 |
Non-flammable substrate |
B-s2,do |
GPRD |
|
DIN 4102-1 |
Product Group 1-10 (all DI-NOC films) |
Non-flammable substrate |
B1 |
GPRD |
|
DIN 54837 |
PS, WG |
Non-flammable substrate |
Non-combustible |
GPRD |
|
FAR-25.853 |
WG 165 |
Non-flammable substrate |
Non-combustible |
GPRD |
Cleaning/Maintenance
For cleaning of applied Carbon Fiber Vinyl use a soft textile with detergent and water. For heavy dirt accumulation use detergent and water at 70°C - 80°C.
Removal
Carbon Fiber Vinyl are removable with a heat gun at 80°C – 100°C or the Bosch steam remover PTL1 can be used.
Shelf Life, Storage, Shipping
The fabricator may store unprinted film for a period of up to three years. Film and markings must be stored in a clean area, free from excessive moisture and direct sunlight, on at least a 3" core with the film facing outward, with ambient temperatures of 35°C or less.
