| Place of Origin: | China, Shanghai |
| Brand Name: | Osign |
| Model Number: | OPP3mm |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton box and pallet |
| Delivery Time: | 1-3 Days |
| Payment Terms: | T/T, money gram, western union, L/C, D/P |
| Supply Ability: | 500000 Rolls Per Week |
| Material: | PP | Thickness: | 3mm To 20mm |
|---|---|---|---|
| Size: | 1220*2440*3mm To 20mm | Load Port: | Shanghai |
| Packing: | Carton 10 Pcs/carton | Lenght/roll: | 50M Or As Your Request |
| Payment Term: | T/T/ L/C/ WEST UNION/ PAYPAL | Price: | Powerful |
| Type: | Top Quality | Port: | Shanghai |
| High Light: | blank plastic engraving plates,laser engraving plastic sheets |
||

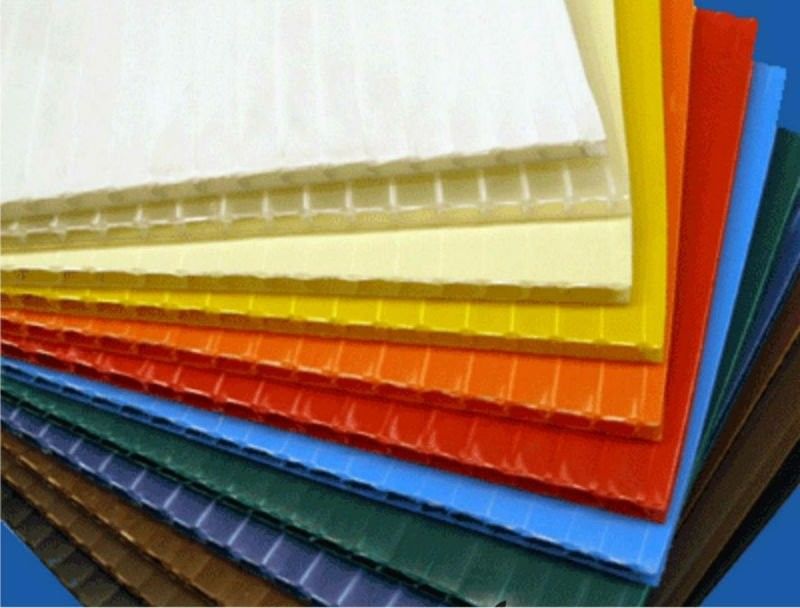

corrugated plastic sign blanks /coroplast sheets /coroplast plastic /3mm coroplast /5mm coroplast / 4mm coroplast /corrugated plastic /pp corrugated sheet /pp hollow plastic sheet /pp corrugated sheet 3mm to 20mm or others do as required
PP corrugated sheet is made by polypropylene.Its advantage is light weight but strong,water-proof,recylable,impact resistant etc
PP corrugated sheet is made of blended PP copolymer and extruded in monoblock. It features flat, smoothness, light-weight, durability, and high-impact, anti-frost and chemical resistance.
The most important property of PP board is that it meets the requirements of environmental protection because it is made of the compound of carbon and hydrogen, fire-retardant, toxic-free and can be recycled, reused and reduced.
The thickness of current products are 2,3,4,5,6,7,8,9,10,11,12mm and with over ten different colors for choices. In addition, electric conduction or anti-staic agent can be added to be electric conductive or anti-static. Anti-ultraviolet agent can also be added to make the board anti-aging, weather-proof material.
Application of PP Corrugated Sheets:
1. For buffer/protection
The hollow structured of PP corrugated sheet and its impact-proof, compression resistant characteristic is suitable for bending, folding and packing. It is suitable for packing electronic products, steel roll, steel rope, wire or automobile, spare parts. In addition, its water/grease-proof, anti-chemical characteristic has made it an inevitable material for building.
2. For transportation/Packing
The toughness and hollow structure of PP corrugated sheet can easily be beat and cut. It can be designed as all kinds of transportation box, mailbox, display rack, partition, etc. If you use well electric conduction or anti-static material, it will fully stabilize electric resistance. The characteristic of lightweight but born heavy is best for packing.
3. For display/advertisement
The surface of PP corrugated sheet is smooth and flat, after corona treatment makes it good for printing. The print effect is excellent. it is water/heat-proof suitable for indoor/outdoor display board/advertisement.
Performance:
|
Item |
Unit |
Thickness & Physical Performance Parameter |
||||||||||
|
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
||
|
Gram Weight |
G/M2 |
400- |
400- |
700- |
800- |
1200- |
1400- |
1600- |
1800- |
2000- |
2100- |
2200- |
|
Tension Fracture |
N |
≥200 |
≥250 |
≥300 |
≥350 |
≥400 |
≥450 |
≥500 |
≥550 |
≥600 |
≥700 |
≥800 |
|
Elongation at Break |
% |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
|
Horizontal Compression |
N |
≥700 |
≥900 |
≥1000 |
≥2500 |
≥3000 |
≥3500 |
≥4000 |
≥4500 |
≥5000 |
≥6000 |
≥7000 |
|
Vertical Compression |
N |
≥90 |
≥150 |
≥350 |
≥600 |
≥600 |
≥700 |
≥750 |
≥800 |
≥1000 |
≥1100 |
≥1200 |
|
Tearing Force |
N |
≥50 |
≥60 |
≥70 |
≥80 |
≥100 |
≥150 |
≥150 |
≥180 |
≥210 |
≥240 |
≥270 |
